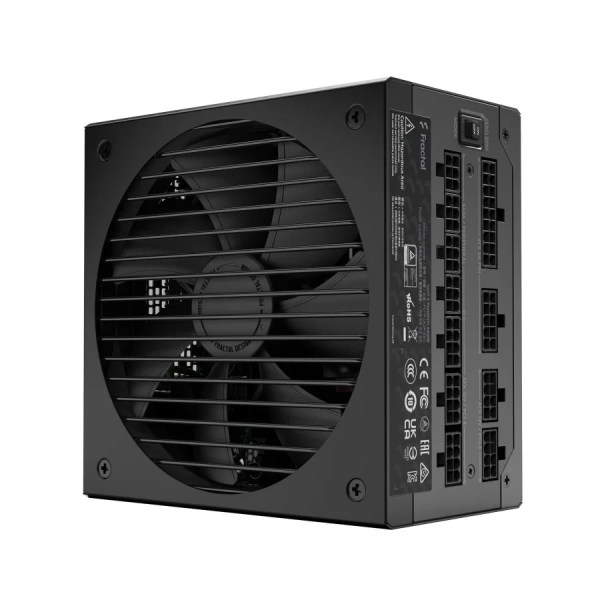

Power Supply Fractal Ion 2 Platinum 660W 80Plus FD-P-IA2P-660

DeskripsiPower Supply Fractal Ion 2 Platinum 660W 80Plus FD-P-IA2P-660Specifications 80PLUS® certification : Platinum Modular cables : Fully modular Fan type : 140 mm FDB bearing Fractal Design Dynamic series fan Maximum operating temperature (full load) : 50°C Semi-passive operation : Yes, user selectable (Zero RPM) Capacitors : Japanese Life expectancy : 100,000 hours PSU specification compliance : ATX12V 2.52; EPS12V 2.92 Cable type : Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires Input voltage : 100-240V C Input frequency : 50-60 Hz Input current : 10A/5A Protection features : Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection Standby efficiency : ErP 2013 (<0.45W @230. VAC, 45 mA load on 5Vsb) Sleep state compliance : C6/C7 Approvals & certifications : CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC KCCConnectors ATX 24-pin x1 ATX12V 4 4 pin / EPS12V 8-pin x2 PCIe 6 2 pin x4 SATA x10 Peripheral x4Cable Configuration (length in mm between connectors) ATX 20 4 pin : 600 mm ATX 12V 4 4 pin : 700 mm EPS12V 8-pin : 600 mm PCIe 6 2 pin : 550 120 mm SATA : 400 150 150 150 mm & 650 150mm Peripheral : 400 150 150 150 mmDC Output 3.3V : 20A 5V : 20A 3.3V and 5V combined : 110W 12V : 55A -12V : 0.3A 5Vsb : 3A Total Power : 660WPower Supply Fractal Ion 2 Platinum 660W 80Plus FD-P-IA2P-660 Limited Warranty 10 years FractalTerkait
